Hand Sanitiser Dispenser
This SQ600 Commercial Grade, Automatic, Non-Contact Hand Sanitiser Dispenser is an ideal solution for schools, kindergartens, shops, offices, hospitals, airports, hotels, restaurants, retail stores, warehouses and patient waiting rooms.
This smart sensing (auto-sensing) sanitiser system has a completely touchless design providing quick sanitisation without having to physically touch the machine. It also has a LED indicator for night use.
 |
|
Features include: |
| • |
New Non-Contact Technology – Uses smart sensing (auto-sensing) technology. Detects distance 0-12cm under the dispenser with ¼ sec response to automatic spray of liquid. |
| • |
Suitable for 3 different liquid options: Dispenser is suitable for 3 different liquid options: sanitiser, foam, and soap (Note: foam and soap nozzle sold separately). |
| • |
1 Litre Capacity - Solid large refillable bottle 1000ml capacity. |
| • |
Lockable – Secure and lockable case (can only open case with safety Key). |
| • |
Liquid Viewing Window – Allows you to view the liquid level in the dispenser. |
| • |
Battery operated - Battery operated dispenser. Use 4 x 1.5v C size batteries (Note: batteries are not included). |
| • |
Low power consumption - batteries last up to 10,000 sprays. |
| • |
Power Supply Option - Unit can connect directly to power via a transformer (Note: power supply transformer is not included). |
| • |
Adjustable feet – for extra stability when using on uneven surface or carpet surfaces. |
 |
|
Features include: |
| • |
Solid Steel Frame and Heavy Wide Steel Base - for extra stability. |
| • |
Enclosed Drip Tray – for the collection of excess liquid. Prevents spillage and elimination of slippage. |
| • |
Adjustable feet – for extra stability when using on uneven surface or carpet surfaces. |
| • |
Certificates and Standard Compliance - The unit complies with all 3 major Certificates and Standards: CCC / CB / CE. |
|
|
|
Hand Sanitiser Dispenser Unit |
|
|
|
|
|
|
|
|
Product Model: |
SQ600 |
| Product Name: |
|
Floor Stand automatic no-contact Hand Sanitieer Dispenser |
|
| Product Code: |
|
Wall Mount: PPE-AHS-005-W |
|
Floor Stand: PPE-AHS-005-W |
|
| Dispenser Dimension: |
W:124mm H:256mm D:108mm |
| Stand Dimension: |
W:300mm H:1700mm D:370mm |
| Sensing method |
Infrared auto-sensing |
| Sensing rageSensing rage |
0～12cm |
| Response time |
25ms ( 1/4 sec) |
| Power supply |
|
4 X C size battery(Non rechargeable),(Or DC6V power supply (optional) can not use with battery) |
|
| Battery working time |
10,000 |
| Switch |
Switch keys |
| Installation mode of liner |
|
Independent assembly, easy to replace and clean |
|
| Liquid capacity |
1000ml |
| Liquid pump |
Spray |
| Spraying volume |
1.2ml (Spray) |
| Opening method |
Open with safety key |
| Liquid exchange method |
Manual open cover to replace liquid |
| Shell material |
Environmental ABS materials |
| Net weight |
~ 0.85KG |
| Mounting method |
Floor stand |
| Workplace |
Indoor / Outdoor |
|
Transportation environment |
|
|
Temperature - 20 ~ 60 C, humidity 5% ~ 85% RH
Vibration test - IEC60721-3-2 Class 2M2 |
|
|
|
|
Operation and
storage environment |
|
|
Operating environment: temperature 0 ~ 40 C, humidity 35% ~ 85% RH
Storage environment: temperature - 10 ~ 50 C, humidity 15% ~ 90% RH |
|
|
|
|
Pillar package weight: 2.5KG
Base package weight: 6.69KG |
|
|
|
|
Pillar package size: 1160X125X83mm
Base package size: 385X315X155mm |
|
|
|
|
Certificates compliance: CCC / CB / CE
Electrostatic rating:
Contact discharge: Level II
Air discharge: Level III |
|
|
|
|
1 x Automatic Non-Contact Hand Sanitiser Dispenser
1 x Floor Stand
1 x Full color printed sign |
|
|
|
|
|
|
|
|
For More information about the Hand Sanitiser Dispenser - click here
|
|
|
|
|
|
|

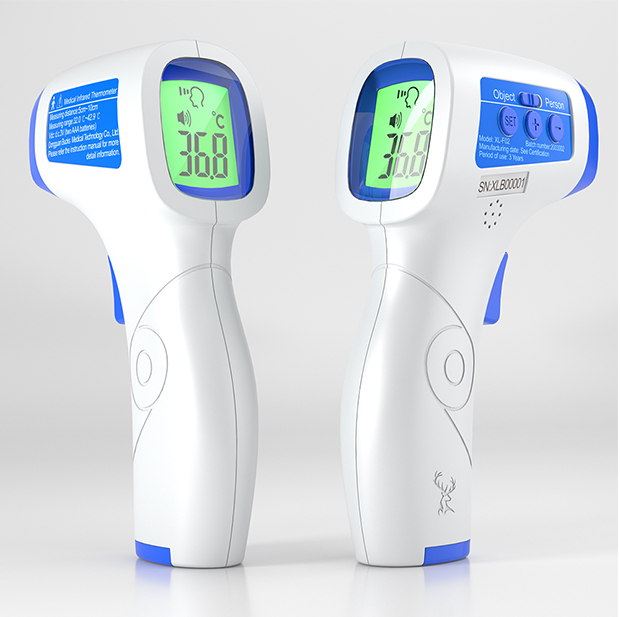

Non-contact infrared thermometer |
|
|
|
|
|
|
| Product Code: |
PPE-THER-001 |
|
|
| Material |
ABS |
|
|
| Color |
Blue 285C+ white |
|
|
| Measure distance |
5~10CM |
|
|
| Temperature measure range: |
32℃~42.9℃ |
|
|
| Memory |
32set |
|
|
| Automatic shutdown: |
20Sec |
|
|
| Max error |
in 35℃~42℃，Max error±0.2℃ |
| out of 35℃~42℃，Max error±0.3℃ |
|
|
| Volt |
d.c.3V(2XAAA battery) |
|
|
| Time |
3 years |
|
|
| Net Weight |
90G |
|
|
| Dimension |
155mm x 115mm x 45mm |
|
|
| Instrument classification: |
Class II, Class II |
|
|
| For More information about the thermometer - click here |
|
|
|
|
|
|
|
Package |
|
|
|
|
|
|
Package Code: |
PPE-PD-MED005 |
|
|
|
|
|
|
Package Includes: |
3 x Automatic Non-Contact Hand Sanitiser Dispenser
3 x Sanitiser Stand Frame.
3 x Full Colour Printed Header Sign.
1 x Non-contact infrared thermometer |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
